Chemical Free Iron and Hydrogen Sulfide Filtration with Bacterial Control
NOW FEATURING BLUETOOTH CONTROL!
Introducing the Genesis Ozone Chemical Free System, the ideal solution for controlling iron, hydrogen sulfide, manganese and bacteria within the filter system. No more rotten egg water. No more messy and expensive chemicals.
Our Genesis Ozone Chemical Free system allows you to reduce high dissolved iron up to 10ppm, manganese up to 5ppm, and hydrogen sulfide up to 5ppm with one simple system.
Effectively and Safely Controls...
Removes high dissolved iron up to 10ppm. Goodbye metallic tasting water.
Eliminates up to 5pppm of Hydrogen Sulfide and that rotten egg smell.
Removes up to 5ppm and removes its impairing color, odor, and taste to the water.
Removes common bacteria such as E coli and coliform that can cause cramps, nausea, and headaches.
How Does Ozone Water Purification Work?
Ozone is composed of three Oxygen atoms. One of the atoms is connected to the others weakly and will transfer itself to other substances such as viruses and bacteria, causing them to oxidize by binding itself onto them. Ozone water purification accounts for more than 90% of the world's purified water and most bottled waters are treated by ozone. There is a new trend in which some pool companies have begun to use ozone water purification instead of traditionally used chlorine due to the fact that it has less undesirable side effects.
1. Ozone Generation
Ozone water purification requires something called an ozone generator. The ozone generator produces ozone much in the same way as the sun does in the upper atmosphere. High intensity ultraviolet lamps inside the ozone generator simulate the ozone producing ultraviolet rays of the sun and when compressed air is passed through the ultraviolet chamber of the ozone generator, some of the oxygen is converted to ozone.
2. Ozone Saturation
The ozone that has been produced is then passed into a diffuser which creates bubbles and saturates them with ozone.
These ozone saturated bubbles are then mixed with water in a water purification tank causing the weaker Oxygen molecule in the ozone to separate and bind itself to any organic molecules existing in the water. When this oxygen molecule attaches itself to organic matter oxidization takes place and the substance is turned into something else resulting in purified, clean drinking water.
4. Purified Water
Water purified by ozone is now free of protozoa, fungi, germs and bacteria and is safe for human consumption.
Set and Forget
The Genesis Ozone System is a "set and forget" system! No need to ever worry about reprogramming or resetting the time. The Genesis control has a unique feature of an internal capacitor that will keep your time set for up to 48 hours in the event of a power outage. It also has a non-volatile memory standard that will never allow your system settings to ever be lost.
|Resin Tank Size||1 Cu. Ft.||1.5 Cu. Ft.||2 Cu. Ft.|
|No. of Bathrooms||3||4||5|
|Required Backwash Rate||4 GPM||5 GPM||7.5 GPM|
|Service Flow Rate||5 GPM @ 15 psi drop||7.5 GPM @ 15 psi drop||10 GPM @ 15 psi drop|
|Internal Port Size||1"||1"||1"|
|Removes Hydrogen Sulfide||Yes||Yes||Yes|
|Chemical Free Solution||Yes||Yes||Yes|
|Media Tank Size||9x48||10x54||12x52|
|Overall Dimensions (WxDxH)||15x15x56||15x15x62||16x16x60|

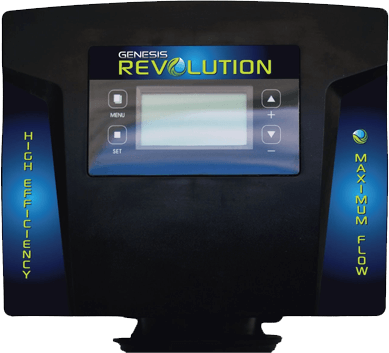

Genesis Backwashing Digital Timered Control Valve
Ozone Generator with Air Dry Chamber
High Capacity Pro Flow Media
100% Chemical Free Operation
1 inch Bypass Connections
|Regeneration Type||Timer Initiated|
|Internal Port Size||1"|
|Electrical Power Requirements||120v/60hz|
|Warranty||10 Years Control/ Lifetime Tanks|
